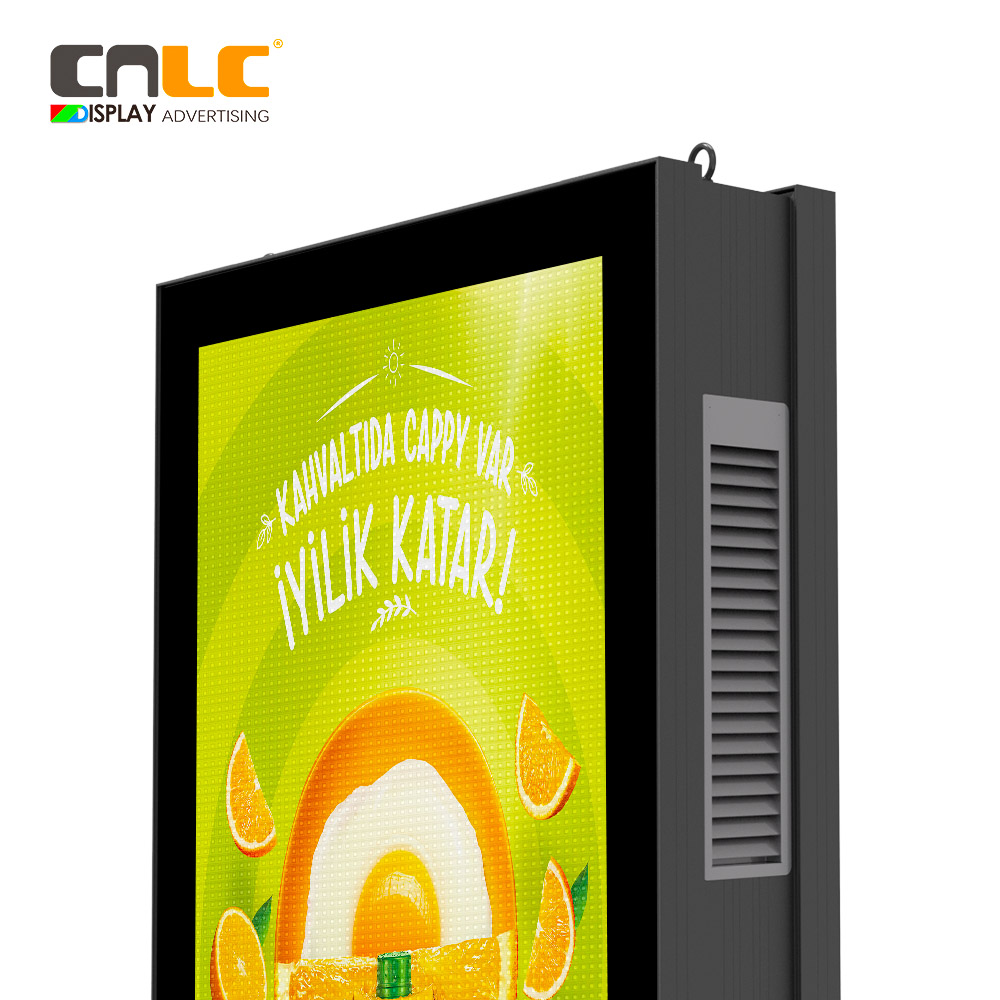

Our LED billboard display is a high-quality LED advertising display specially designed for outdoor environments. Its aluminum structure has excellent waterproof performance and can adapt to various harsh weather conditions. Whether it is on the side of the road, in a square, or in a community, this display can show bright and brilliant full-color effects, attract attention, and deliver effective advertising information.
Item No :
CNLC-ED-SC0303Size :
CustomizeBrightness :
5000 cd/m2resolution ratio :
SMDMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP65
Are you tired of your outdoor LED displays having poor advertising results due to reflections?
Solution:
CNLC’s new LED advertising display with AG glass panel is the perfect solution you have been looking for. With its AG glass panel, it effectively reduces reflections for a clear and lifelike viewing experience, and its high-brightness properties ensure excellent visibility even in bright sunlight.
Anti-reflective
◆ AG glass combines anti-reflective technology and ultra-thin coating technology, making the display clear and visible under various lighting conditions, effectively reducing the interference of ambient light, and showcasing excellent clarity and color reproduction capabilities.
Corrosion-resistant Aluminum Construction
◆ Because aluminum can form a hard oxide layer on its surface, it can effectively isolate air, moisture, and other corrosive elements. This protective film formed by the oxide layer can resist oxidation, corrosion, and rust, allowing outdoor billboard displays to maintain a good appearance and structural integrity even in harsh weather conditions.
More Feature:
Stable Quality
Easy for Maintenance
◆ LED screen is famous as its stable quality and low power consumption.You can easily replace the LED modules for warranty.
High Brightness
Outside Visibility under Sunlight
◆ Outdoor LED digital totem of CNLC has a ultra high-brightness up to 5000 cd/m². In order to keep a clear visibility for exterior applications ,even under direct sunlight.
Temperature control
Intelligent Air Cooling System
◆ The efficient air cooling system makes air curtain in front of the surface of LED screen, and bring out the heat from the LED panel. The LED panel withstand high temperature up to 110 degrees.
◆ That’s the powerful performance of our exterior LED digital totem.
Digital Totem of LED Screen
◆ The LED digital signage always provide precise image for advertising, enhancing your brand impression and product attraction to the audience. It's the most effective way for visual communications and exterior advertising with the potential customers.
Waterproof
IP Rating Protection
◆ IP rating protecting grade to make sure the exterior Totem LED is available for different outdoor applications.Prevent from water and sand.
TECHNICAL SPECIFICATIONS
Pixel Pitch(mm) | 2.5mm | 3.076mm |
4mm |
Module resolution | 128*64 | 104*52 | 80*40 |
Module size (mm) | 320*160 | ||
Density (points/m²) | 160000 | 105625 | 62500 |
Scan method | 1/16scan | 1/13scan | 1/10scan |
Material of Frame and Support Structural | Aluminum profile and steel frame | ||
Cooling system | Build in cooling fans | ||
Embedded heater | Optional | ||
Media update | Remote control (LAN and WIFl) | ||
Operating Ambient Temperature | -20℃~+60℃ | ||
Waterproof level | IP56 | ||
Maintenance method | Back | ||
Refresh frequency (Hz) | 3840 | ||
Brightness(nits) | 5000 | ||
Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
Contrast Ratio | 4000:1 | ||
Power consumption(w/m²) | 684 | 895 | 645 |
