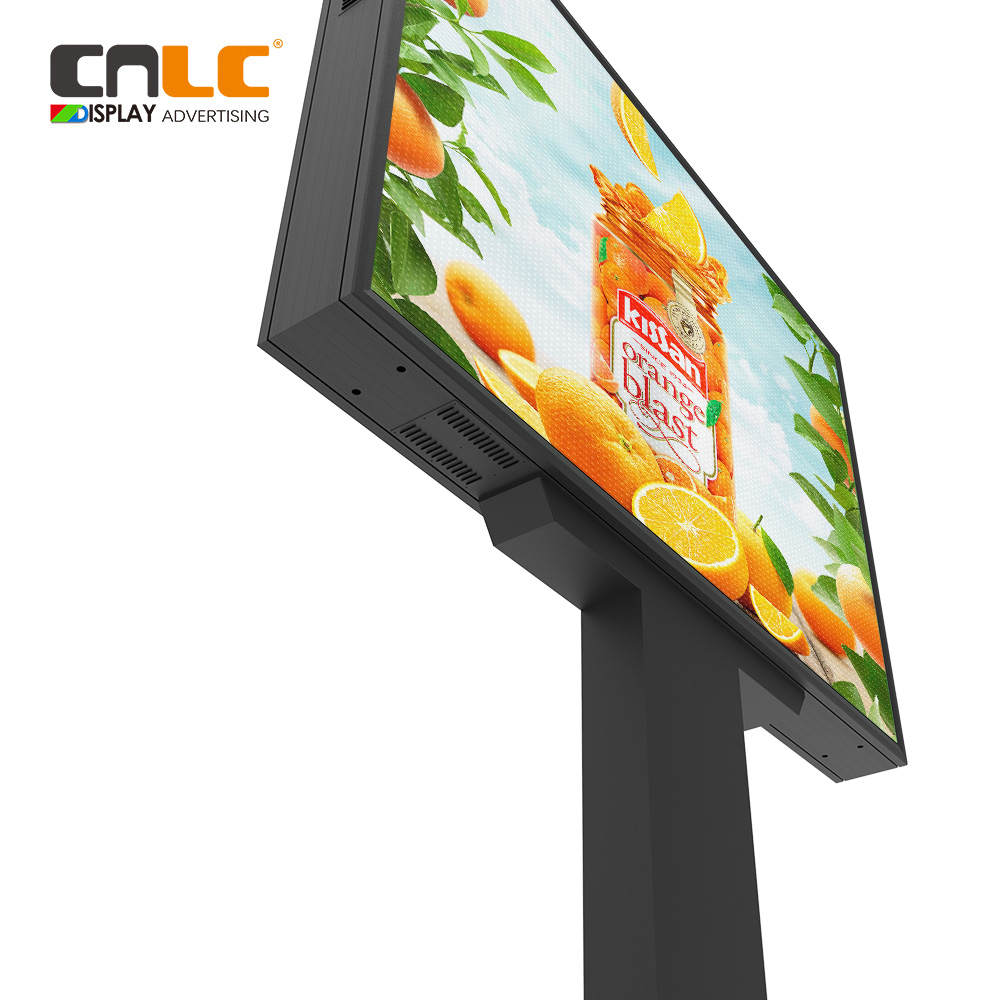

This smart urban LED board, with its aluminum casing, guarantees stability against water, dust, and rust. The dual-sided design maximizes ad visibility, complemented by smart city technology for efficient remote management and scheduled playback.
Item No :
CNLC-ED-SP0912Size :
CustomizeBrightness :
5000 cd/m2resolution ratio :
SMDMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP65In large-scale outdoor advertising applications, do you often face the problems of complex assembly and installation and difficult maintenance?
Solution：
Our large LED display panel breaks through this dilemma.
Easy to install
◆ We package the product skeletons separately, and only need to assemble the products after transporting them to the local area.
Temperature control
Intelligent Air Cooling System
◆ The efficient air cooling system makes air curtain in front of the surface of LED screen, and bring out the heat from the LED panel. The LED panel withstand high temperature up to 110 degrees.
◆ That’s the powerful performance of our exterior LED digital totem.
All-aluminum structure, corrosion resistance, beautiful
◆ Oxidation protective layer: An oxide film is easily formed on the surface of aluminum metal. This oxide film can provide a protective layer to prevent further corrosion.
◆ Corrosion resistance: Aluminum itself has good corrosion resistance. It resists corrosion in most environmental conditions, including moisture, salt spray and other harmful elements. This makes aluminum suitable for outdoor environments, especially coastal or rainy areas.
◆ Lightweight and high strength: Aluminum is a lightweight and high-strength metal, which helps reduce the weight of the structure, reduces the pressure of the external environment on the supporting structure, and delays the occurrence of corrosion.
Waterproof
IP Rating Protection
◆ IP rating protecting grade to make sure the exterior Totem LED is available for different outdoor applications.Prevent from water and sand.
ICND2270 Mini/Miro LED Driver chips
MINI/Micro LED Chip
Performance Summary :
◆ Number of output channels : 48
◆ Built-in MOS : 30PMOS
◆ Channel output current : 0.25-16mA
◆ Scanning design : 1-90scan
◆ Refresh rate : 7680 hz+
◆ GCLK : PLL
◆ Packaging : QFN88
DESIGN of DRAWING
PROJECT CASE
| Pixel Pitch(mm) | 4mm |
5mm | 8mm |
| Module resolution | 80*40 | 64*32 | 40*20 |
| Module size (mm) | 320*160 | 320*160 | 320*160 |
| Density (points/m²) | 62500 | 40000 | 15625 |
| Scan method | 1/10scan | 1/6scan | 1/5scan |
| Material of Frame and Support Structural | Aluminum profile and steel frame | ||
| Cooling system |
build in cooling fans | ||
| Embedded heater |
Optional | ||
| Media update |
Remote control (LAN and WIFI) | ||
| IP rating | IP56 | ||
| Maintenance method | Back | ||
| Refresh frequency (Hz) | 3840 | ||
| Brightness(nits) | >5000 | ||
| Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
| Color Temperature |
3000 - 18000 k | ||
| Contrast Ratio | 4000:1 | ||
| Operating Ambient Temperature | -20℃～+60℃ | ||
| Avg. Power consumption(w/m²) | 323 | 372 | 322 |
