Item No :
CNLC-ED-SM0504Size :
CustomizeBrightness :
5000 cd/m²resolution ratio :
SMDMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP56
Dynamic & Static Ad Combo

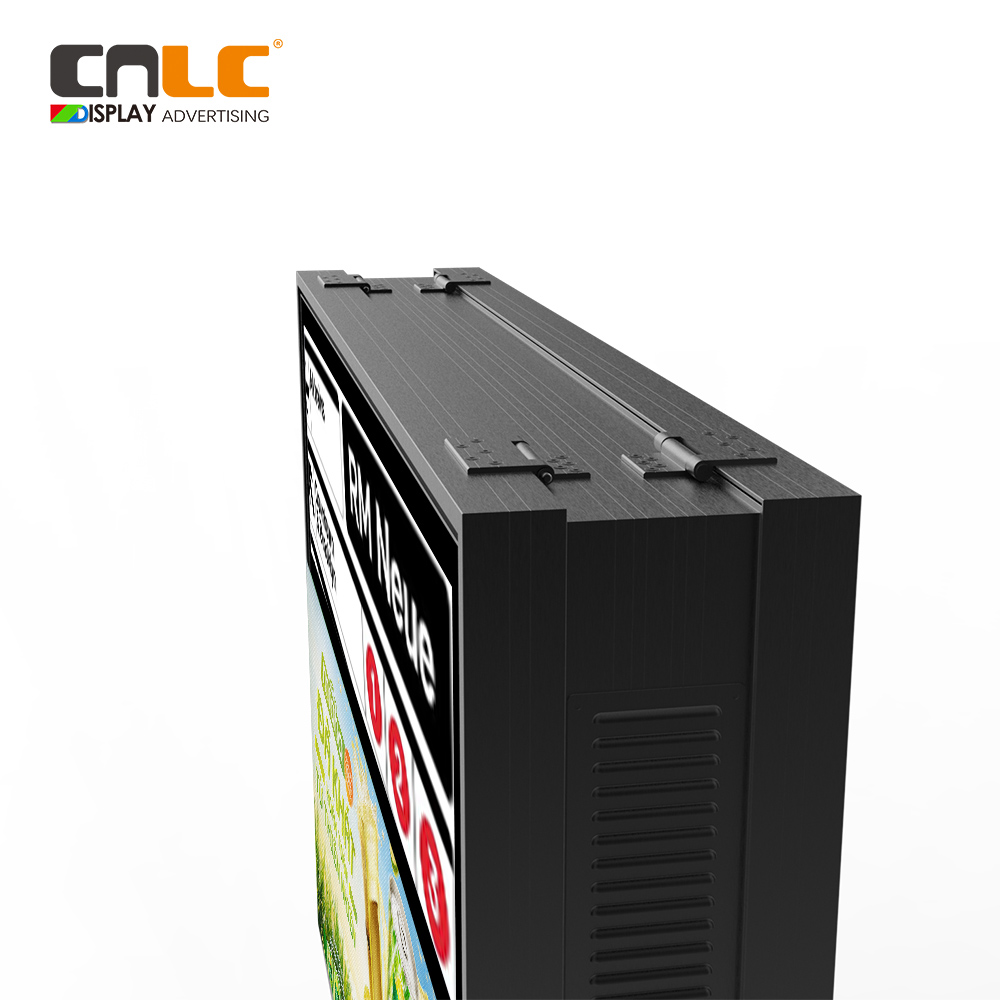

◆ This LED Digital Billboard uniquely combines static lightbox posters with dynamic LED displays, offering stable static information and dynamic content updates, enhancing ad appeal.
Aluminum Structure
◆ The aluminum structure of CNLC's split screen LED billboard provides strong, lightweight support and exceptional corrosion resistance, ensuring long-lasting durability and reliability in harsh conditions.
Glassless Cover Design
◆ This split screen LED digital billboard display employs a glass-free design, fundamentally eliminating screen glare issues to ensure a clearer viewing experience.
Furthermore, the absence of a glass cover enables faster heat dissipation, maintaining the device at stable operating temperatures and extending its lifespan.
High Brightness
◆ Featuring a high-brightness design, the Seamless LED Screen ensures clear visibility in bright environments.
This Split Screen LED digital billboard optimizes visual performance with high contrast and vibrant color display, ensuring content is presented at its best.
IP56 LED Display
◆ With an IP56 rating, CNLC's Split Screen LED Billboard is ideal for outdoor applications, providing robust protection against water, dust, rain, moisture, and sand, ensuring durability in challenging environments.
PROJECT CASE
TECHNICAL SPECIFICATIONS
Pixel Pitch(mm) | 2.5mm | 3.076mm |
4mm |
Module resolution | 128*64 | 104*52 | 80*40 |
Module size (mm) | 320*160 | ||
Density (points/m²) | 160000 | 105625 | 62500 |
Scan method | 1/16scan | 1/13scan | 1/10scan |
Material of Frame and Support Structural | Aluminum profile and steel frame | ||
Cooling system | Build in cooling fans | ||
Embedded heater | Optional | ||
Media update | Remote control (LAN and WIFl) | ||
Operating Ambient Temperature | -20℃~+60℃ | ||
Waterproof level | IP56 | ||
Maintenance method | Back | ||
Refresh frequency (Hz) | 3840 | ||
Brightness(nits) | 5000 | ||
Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
Contrast Ratio | 4000:1 | ||
Power consumption(w/m²) | 684 | 895 | 645 |
