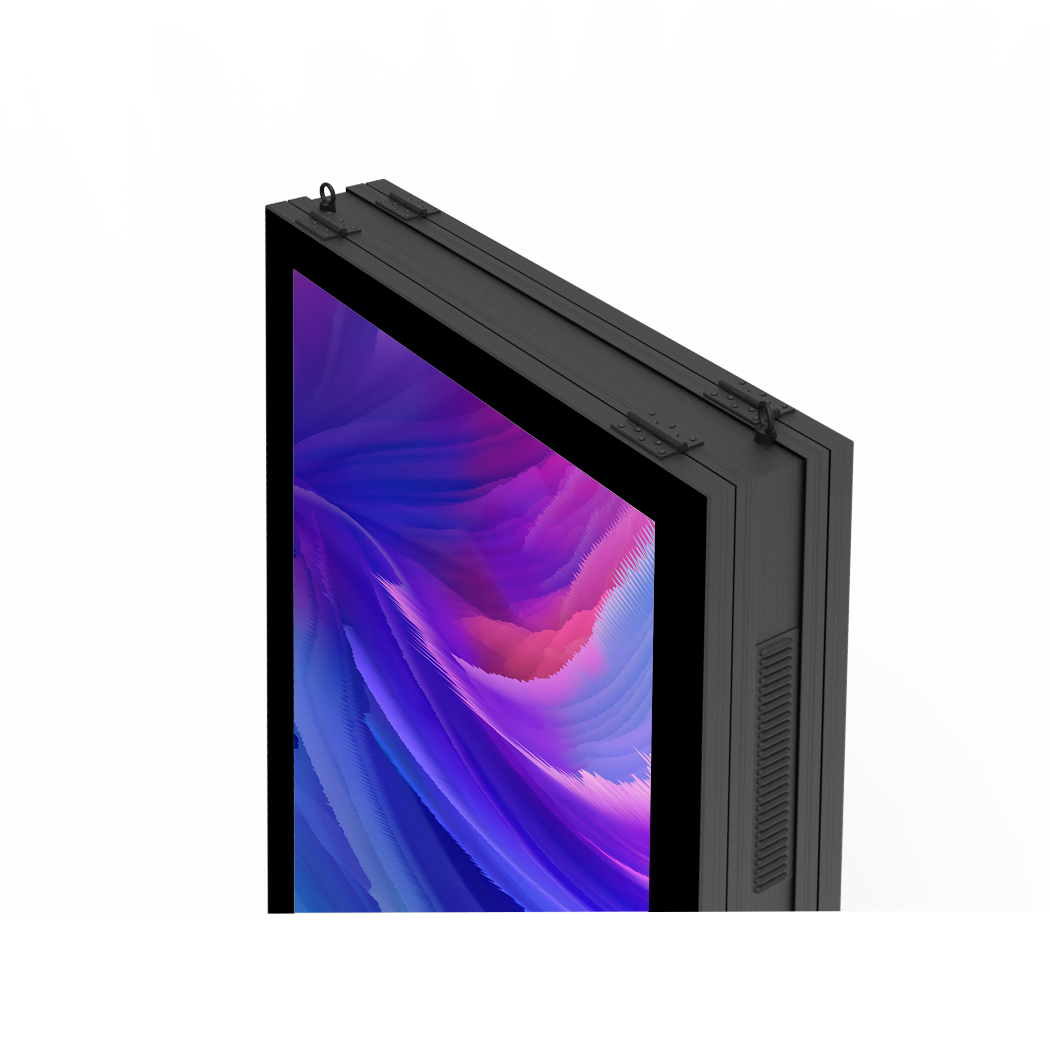

Factory price for the exterior LED totem with reliable quality and competitive price
Item No :
CNLC-ED-DMSize :
CustomizeBrightness :
5000 cd/m2resolution ratio :
SMDMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP56
Precise Enclosure

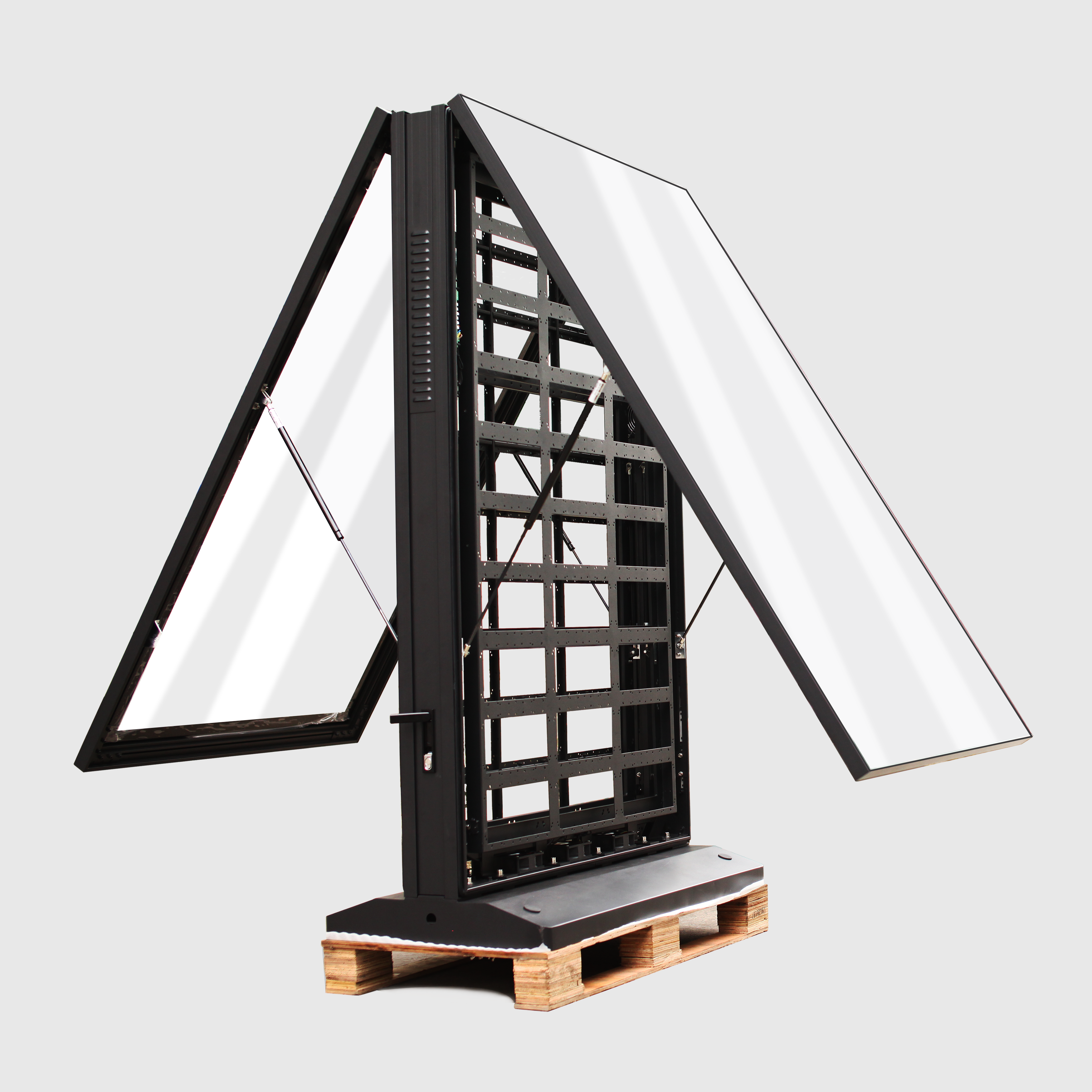

Aluminum enclosure for Totem LED
◆ The aluminum enclosure solution is special for professional buyer who have local technical and assembling team. You can assemble the LED modules and power supplies by yourself.
Temperature sensor
Intelligent Temperature Management
◆ High efficient air cooling system is necessary for the exterior LED Totem .There’s an air curtain in front of the surface of LED screens ,which discharge the heat efficiently.
◆ The suitable ambient temperature makes great help to extend the service life of the LED advertising screen.
Aluminum Structure
Anti-rusting & Good for heat dissipation
◆ The aluminum enclosure is very good for heat dissipation,which is helpful for an exterior advertising LED totem, especially in summer.
Waterproof
IP Rating Protection
◆ IP rating protecting grade to make sure the exterior Totem LED is available for different outdoor applications.Prevent from water and sand.
USER SCENE & CASE
Specification
| Pixel Pitch(mm) | 2.5mm | 3.076mm |
4mm |
| Module resolution | 128*64 | 104*52 | 80*40 |
| Module size (mm) | 320*160 | ||
| Density (points/m²) | 160000 | 105625 | 62500 |
| Scan method | 1/16scan | 1/13scan | 1/10scan |
| Material of Frame and Support Structural | Aluminum profile and steel frame | ||
| Cooling system | Build in cooling fans | ||
| Embedded heater | Optional | ||
| Media update | Remote control (LAN and WIFl) | ||
| Operating Ambient Temperature | -20℃~+60℃ | ||
| Waterproof level | IP56 | ||
| Maintenance method | Back | ||
| Refresh frequency (Hz) | 3840 | ||
| Brightness(nits) | 5000 | ||
| Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
| Contrast Ratio | 4000:1 | ||
| Power consumption(w/m²) | 684 | 895 | 645 |
