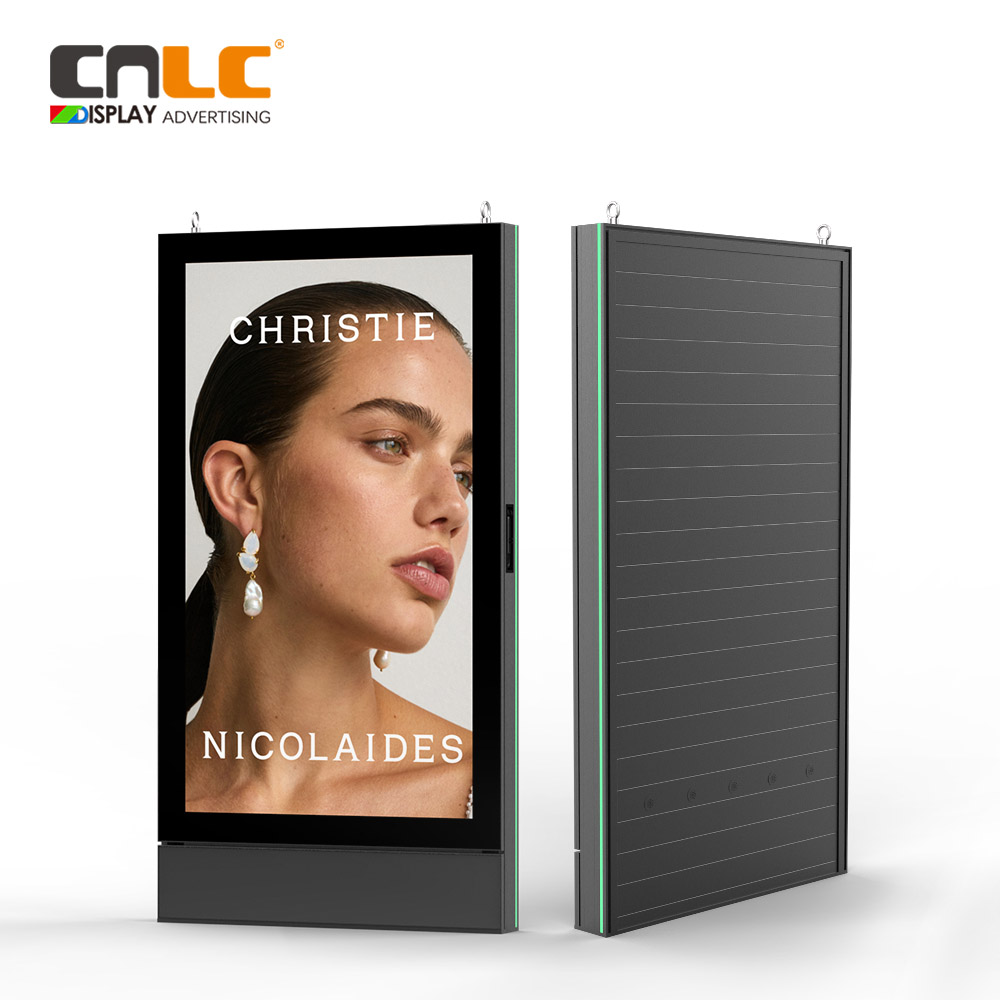

65" single-sided semi-outdoor LCD digital signage, ultra-high brightness module, ultra-narrow black edge of the module, often used in storefront door signs and indoor windows
Item No :
65FL-ST100-ASize :
685*1215*98Brightness :
3500resolution ratio :
1920*1080Material :
Aluminum StructureColor :
Black / Silver / Grey / CustomWaterproof grade :
Not waterproofWeight :
28kg
Semi-outdoor window digital signage
55-inch high brightness semi-outdoor window LCD screen, air-cooled and noiseless
Automatic brightness adjustment
Automatic screen brightness adjustment according to the surrounding brightness
Ultra-thin bezel design
Ultra-narrow black edge 4.7mm, better visual experience
Module Splicing
Built-in splicing panels to accommodate more sizes and solutions
Manual brightness adjustment
Manual toggle buttons to adjust brightness according to application scenarios
Upgrade to new generation
New optical and frame structure, more vibrant colors and more stable frame structure
High and low temperature resistance
-30°+110° normal operation, can adapt to the temperature situation of most regions
Multi-functional integration
Multiple new features, all together at the bottom, unified wiring
Remote sending of advertising screens
Send ad programs remotely from your phone/computer/tablet
Installation style
According to the application scenario to choose the appropriate mounting bracket
Application Scenarios
Suitable for all kinds of store windows, store entrances, indoor shopping malls
Project Case
Specification
| Display |
Panel Size | 55”/65”/75”86” |
| Resolution | 1920x1080/4K | |
| LCD Manufacturer | BOE/LG/AUO( Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30～+110°C) | |
| Viewing angle | 89/89/89/89(L/R/U/D) | |
| Contrast ratio | 1200:1 | |
| Brightness | 2500nits as standard (3500nits/4500nits can be customized) | |
| Aspect Ratio | 16:9 | |
| Active Area | 1210 x 680 mm | |
| Operational Life Cycle-MTBF(hours) | 50K hours | |
| Grey to Grey ResponseTime (ms) | 6Ms | |
| Power |
Input Voltage | AC110- 240±10%, 50/ 60 HZ |
| Leakage Protection | 30mA/0.1S | |
| Built-in Power Socket | 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional) | |
| Timer Switch | 1 pes | |
| Max Power Consumption（W) | TBD | |
| Endosure Material |
Enclosure Material | Fully Aluminum Housing ( Anti-corrosion &. rust-proof with 15 years lifetime) |
| Glass Type | 6mmm tempered glass as standard | |
| 6mm Tempered glass as standard with Double side AR surface treatment with hightransparency, reducing reflection/ UV/IR (optional) | ||
| 6mmn ternpered glass with AG coating, anti-glare surface treatrent reduce reflection(optional) | ||
| Double Laminated AR Glass 3mm+3mr is optional (optional) | ||
| Glass Characteristics | Transmmissivity > 93%, Reflectivity < 2% | |
| Optical Bonding (Optional) | Tempered Glass & LCD Display&Touch optical bonding technology is optional | |
| protection Grade | Not waterproof | |
| Thickness | 100mm | |
Emironrment |
Operating Environment |
Fully Outdoor for All Weathers |
| Operating Temp. |
-30℃～+1110°C |
|
| Operating Humidity |
5%～98% |
|
| Operating Altitude (m) |
≦2000 |
|
| Built-in HDMIinput MonitorVideo Board |
HDMI input |
1 pcs, Support 1920*1080, 4K resolution is optional |
| Signal Output |
VoyOne or LVDS |
|
| Free Remote ContentManage ent Software (ForAndroid only) |
Editing Playlist, timing, playback | |
| Edit Multi Zones play different contents | ||
| One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter | ||
| Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc | ||
| Remote Management by mobile, pC thru wif/lan network | ||
| Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB | ||
| Support Simple UsB sticker plug-play looping images/videos | ||
| Cloud base software is supported | ||
| Free of charge | ||
| PCAP TouchScree(Optional) |
Touch Type | PCAP Touch |
| Touch Max Resolution |
4980*4980 |
|
| Transparency |
> 90%, up to 100% |
|
| Scanning Speed |
> 50s scans/s |
|
| Responsive Time |
<12ms |
|
| Touch Precision |
0.625mm |
|
| Minimnum Touch |
5mm |
|
| Cormmunication |
USB port |
|
Media & Connectivity&Other |
Optional functions |
Heater |
| Camera/webcam |
||
| Customized external Sensor |
||
| AC air conditioner |
||
| Microphone |
||
| Emergency button |
||
